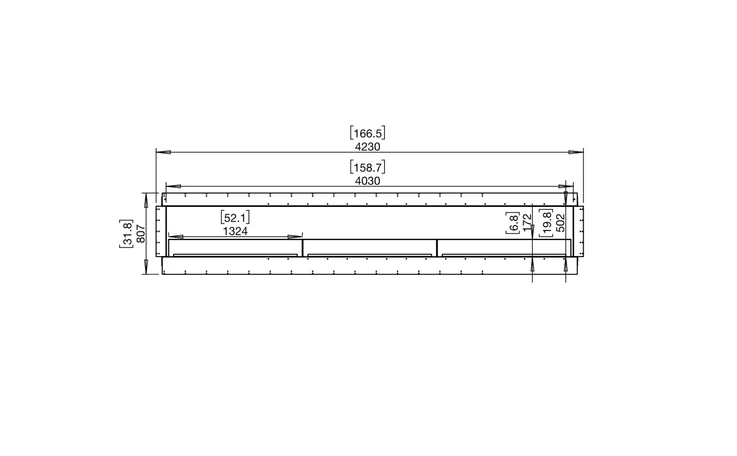

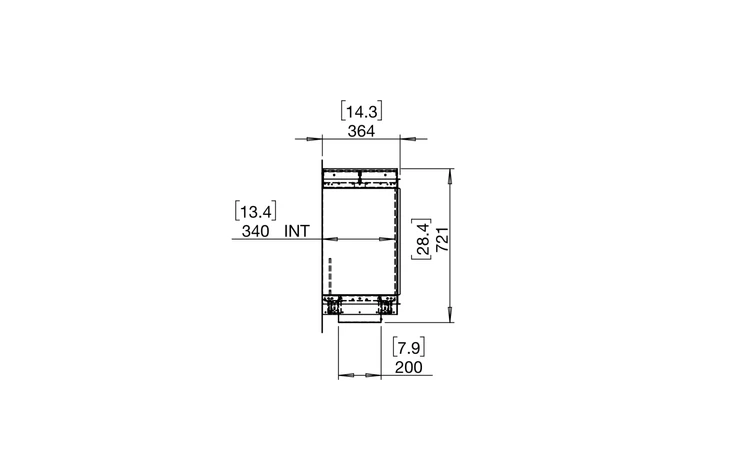

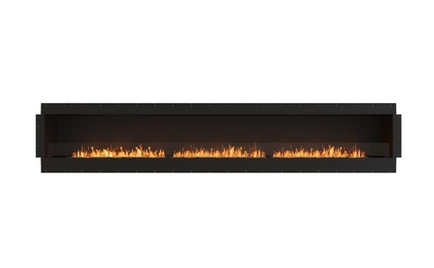

Tasarımcılar, mimarlar ve ev sahiplerini mutlu etmek için tasarlanmış olan bu ikonik açık bacasız şömine modeli özünde tasarım bütünlüğü ile bir odak noktası yaratır. Paslanmaz çelik veya siyah renk alternatifleri ile hemen hemen her dekor ve tasarım ile sorunsuz bir şekilde uyum sağlar. İçerisinde üç adet XL 12000 burner kit bulunan Flex 158 SS geniş alanlar ve açık plan iç mekanlar için ideal bir çözümdür.Geniş ebatları olması sebebiyle yoğun ateş seyir imkanı sağlamaktadır. Mekanınıza uygun olabilecek 30 Farklı ebat seçeneği için bizimle irtibata geçiniz. Renkler : Paslanmaz Çelik veya Siyah Yakıt : Bioethanol ( Bacasız Şömine Yakıtı ) Burner Kit: Our burner kits are in the industry Designed to offer the longest and most efficient burn times. Homogeneous and colorful real flames. Fuel Its capacity 30 L 7.9 Gal Average Heating m2 Min.Used Volume 195m2 2099ft2 345m3 12184ft3 Thermal Power Fuel Efficiency 45870 BTU/h 13.50 kW 51 MJ/h 9-14h 30 Litres Technical drawing Weight
222kg [490lb]
Model Dimensions mm [in]
W 4230 [167] D 365 [14.4] H 807 [31.8]
Viewing Area mm [in]
W 4030 [159] D 340 [13.4] H 502 [19.8]
Materials
Mild Steel & Toughened Glass Packaging Shipping Weight 222kg Packaging Dimensions mm [in]L 4317 [170] W 536 [21.1] H 1068 [42] CBM 2.47m3 Type Crate (Inc Skid) Accessories GET INSPIRED / GALLERY It contains a diagram where you can examine the technical details for the dimensions. Includes post-installation instructions. Contains suggestions, warnings and instructions for your installation plan. Check out our Ecosmartfire fireplace collection Catalogue. PDF File Check out our Ecosmartfire fireplace collection Catalogue. PDF File Autocad format of the model You can download the file. DWG Our burner kits UL certified and thus our Flex Series hoppers. UL certified approved for use. all fuel burner your kit Thus, the plumbing pipe and your licensed bioethanol fuel performs clean combustion, chimney or There is no need for waste gas evacuation. minimalist Collection, zero-space finish application with details It provides unlimited installation freedom and flexibility for builders, architects, interior designers, landscape architects and homeowners. ISO Certificate Every EcoSmart product is in ISO 9001:2008 standard. No Plumbing and Rigging connection required Whole fuel tank burner independently your kit It is securely housed inside and frees you from the installation constraints and costs that come with gas or electrical connections. AISI 316 Stainless Steel Burner kit models and other outdoor models are made of 316 quality stainless steel. It provides high protection against rusting and atmospheric corrosion. Included Accessories Each burner kit model and other models come with an ignition lighter, ignition apparatus, and a fuel filler canister with a special cap. Quick and Easy Installation Collection pieces that require almost no assembly placed in the desired location, immediately to use is designed to. Colors Stainless steel color for the collection interior and black colour can be selected with some exterior space products /Fire Tables 3 colors Observe the option. REQUEST A QUOTE
